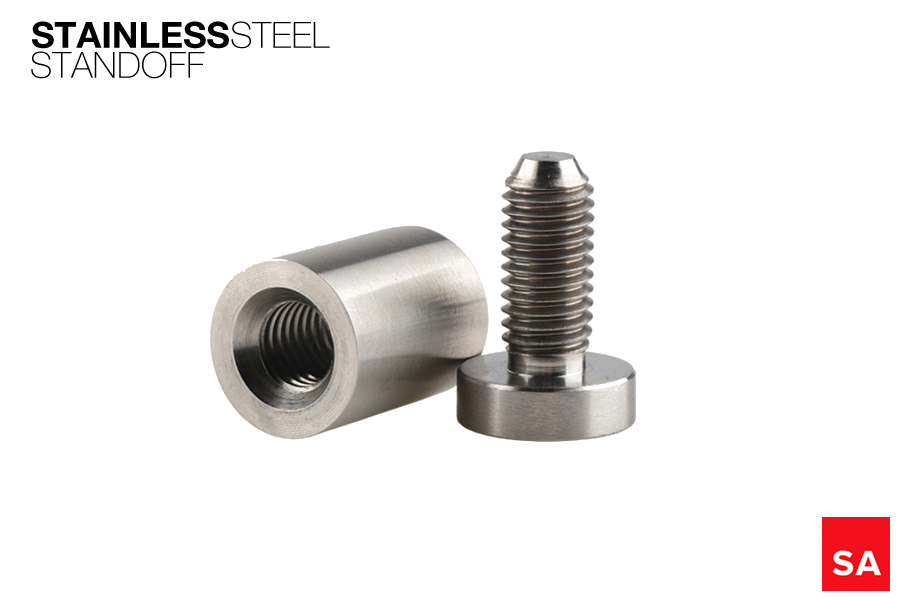

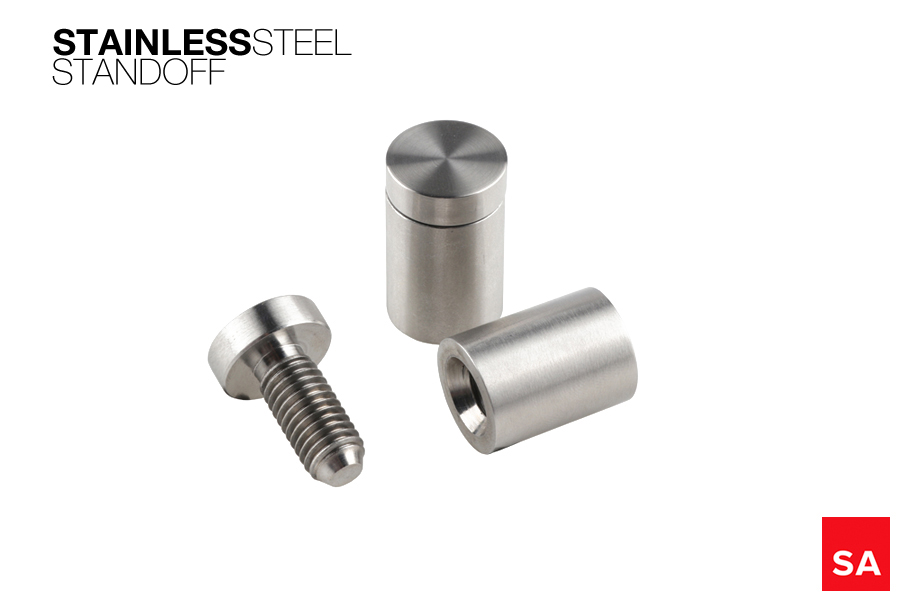

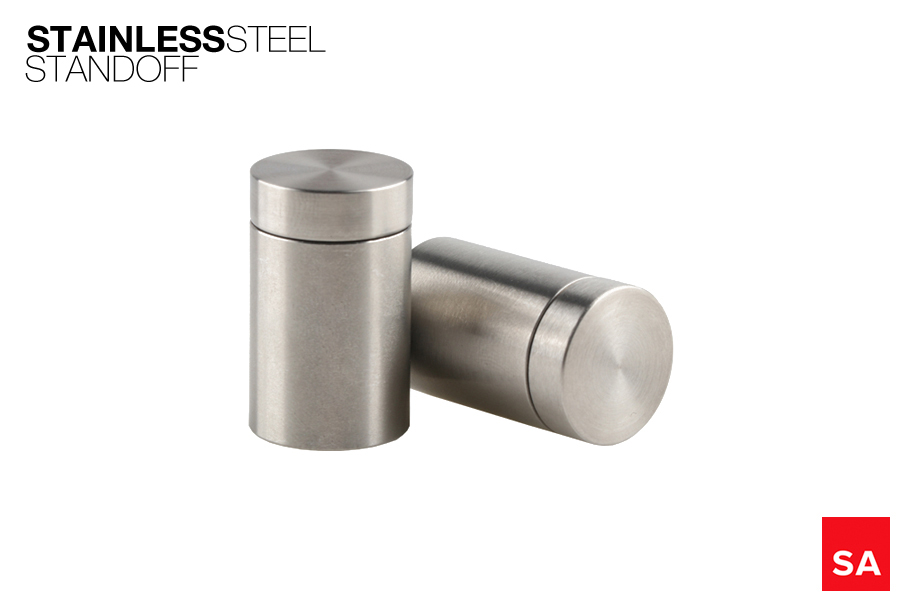

Stainless Steel Flat Top Standoff

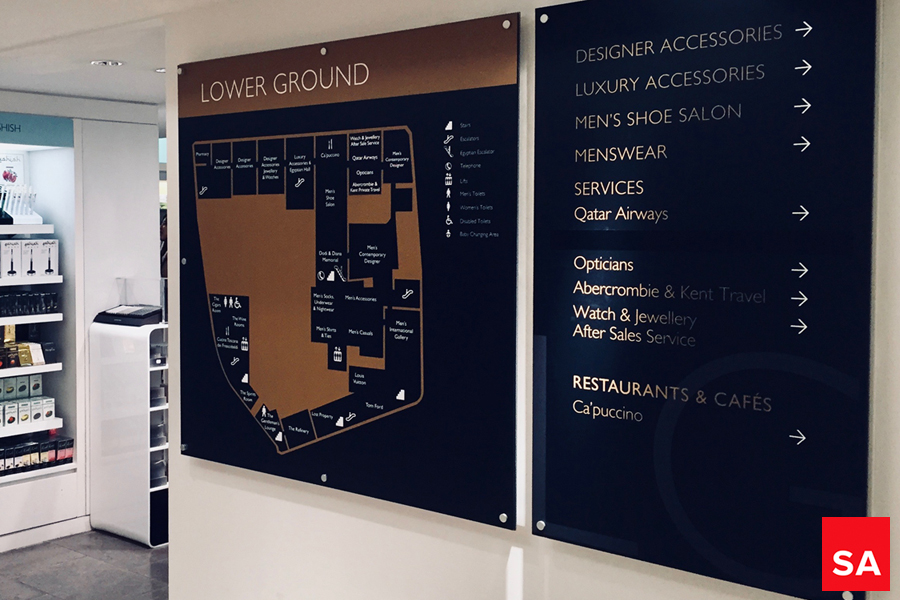

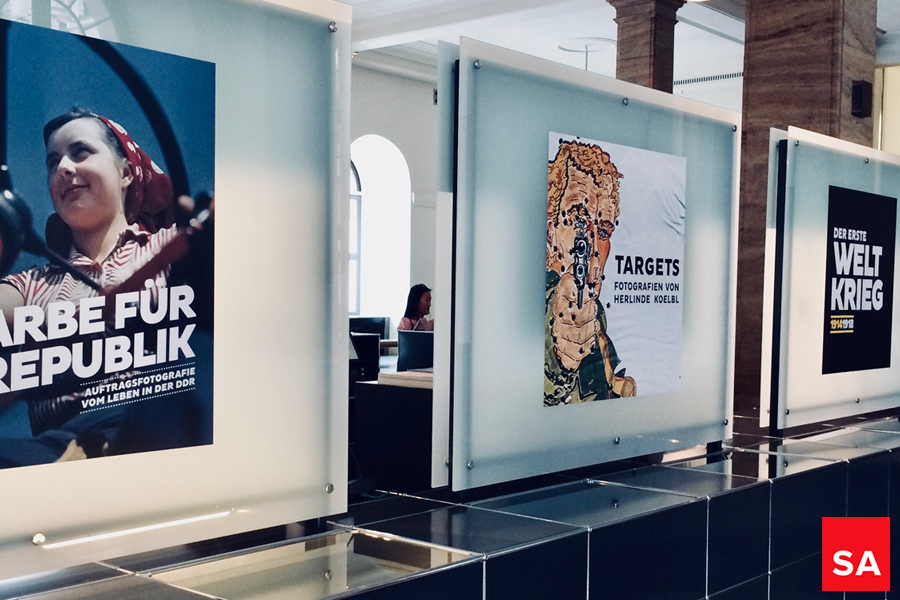

The Stainless Steel Flat Top Stainless-Steel Standoff is ideal for suspending panels, glass, wood, and stone.
Made from 304 Grade Stainless-Steel this item can be used in both indoor and outdoor applications and will not rust.
Material | Stainless Steel |
---|---|
Category Type | Standoff |
SKU | SS-Stainless-Steel-Flat-Top |

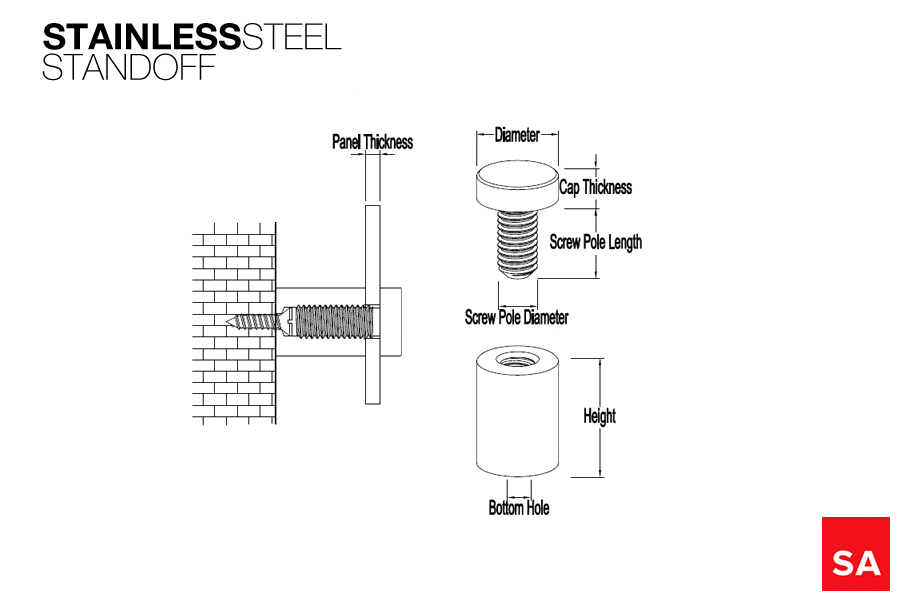

Additional Info | Product Information: Stainless-Steel Standoffs 13mm x 13mm = 0.51" Diameter x 0.66"(Long With Cap) Cap Thickness: 4mm / 0.15" / 5/32 Frac Barrel Without Cap: 13mm / 0.51" / 33/64 Frac Screw Pole: Diameter: 6.5mm / 0.26" / 1/4 Frac ScrewPole Length: 11.5mm / 0.45" / 29/64 Frac Bottom Hole: 4mm / 0.15" / 1/16 Frac The 13mm x 13mm Standoff supports panels Max Thickness: 1/4” 13mm x 19mm Standoff = 0.51" Diameter x 0.90" (Long With Cap) Cap Thickness: 4mm / 0.15" / 5/32 Frac Barrel without Cap: 19mm / 0.74" / 3/4 Frac Pole: Diameter: 6.5mm / 0.26" / 1/4 Frac Screw Pole Length: 16.5mm / 0.63” Screw Hole: 4mm / 0.15" / 1/16 Frac The 13mm x 19mm Standoffsupports panels panels Max Thickness: 3/8” 13mm x 25mm Standoff = 0.51" Diameter x 1.14" (Long With Cap) Thickness: 4mm / 0.15" / 5/32 Frac Screw without Cap: 25 mm / 0.98” Screw Pole Diameter: / 0.09" / 3/32 Frac Screw Screw Pole Length: 22.mm / 0.86" / 55/64 Frac Bottom Hole: 4mm / 0.15" / 1/16 Frac The 13mm x 25mm Standoff supports panels Max Thickness: 1/2”
19mm x 19mm Standoff 0.74" Diameter x 1" (Long With Cap) Cap Thickness: 6.35mm / 0.25" / 1/4 Frac Barrel without Cap: 19mm / 0.74" / 3/4 Frac Screw Pole: Diameter: 9mm / 0.35" / 23/64 Frac Screw Pole Length: 17mm / 0.66" / 43/64 Frac Bottom Hole: 4mm / 0.15" / 1/16 Frac The 19mm x 19mm Standoff supports panels Max Thickness: 1/4” 19mm x 25mm Standoff = 0.74" Diameter x 1.23" Long With Cap) Cap Thickness: 6.35mm / 0.25" / 1/4 Frac Barrel without Cap: 25mm / 0.98" / 63/64 Frac Screw Pole: Diameter: 8mm / 0.31" / 5/16 Frac Screw Pole Length: 15mm / 0.59" / 19/32 Frac Bottom Hole: 4mm / 0.15" / 5/32 Frac The 19mm x 25mm Standoff supports panels Max Thickness: 1/2” 25mm x 25mm Standoff = 0.98" Diameter x 1.25" (Long With Cap) Cap Thickness: 6.35mm / 1/4” Barrel Length without Cap: 25.4mm / 1” Screw Pole: Diameter: 6.35mm / 1/4” Screw Pole Length: 22.5mm / 7/8” Bottom Hole: 4mm / 0.15" / 5/32 Frac The 25mm x 25mm Standoff supports panels Max Thickness: 1/2” 25mm x 40mm Standoff = 0.98" Diameter x 1.82" (Long With Cap) Cap Thickness: 6.35mm / 0.25" / 1/4 Frac Barrel Length without Cap: 40mm / 1.57" / 1-37/64 Frac Screw Pole Diameter: 9.3mm / 0.36" / 23/64 Frac Screw Pole Length: 34mm / 1.33" / 1-11/32 Frac Bottom Hole: 6mm / 0.23" / 15/16 Frac The 25mm x 40mm Standoff supports panels panels Max Thickness 1” |
Usage | Home / Office / Professional / Industrial |
No. Items in Package | 1 |

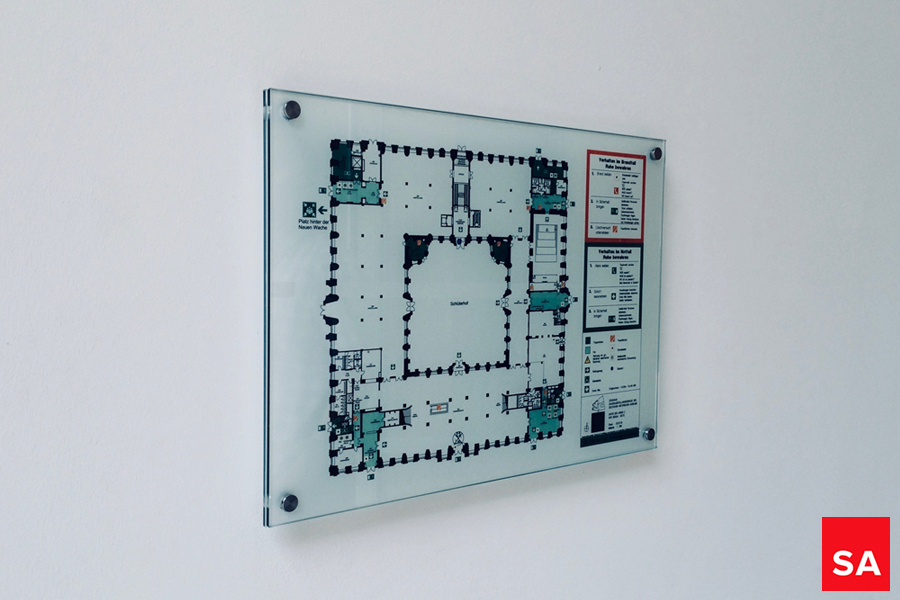

Description | The Stainless Steel Flat Top Stainless-Steel Standoff is perfect for suspending, glass, wood, acrylic, metal and stone. Made from 304 grade Stainless - Steel this item can be used in both indoor and outdoor applications and will not rust. The Stainless Steel Standoff is ideal for high traffic areas that are indoor-outdoor use. It is suggested to use the stainless steel standoffs in places where there is frequent climate change. Standoffs are sold as single units. The Stainless Steel Standoff could be used in any of the following applications:
|
